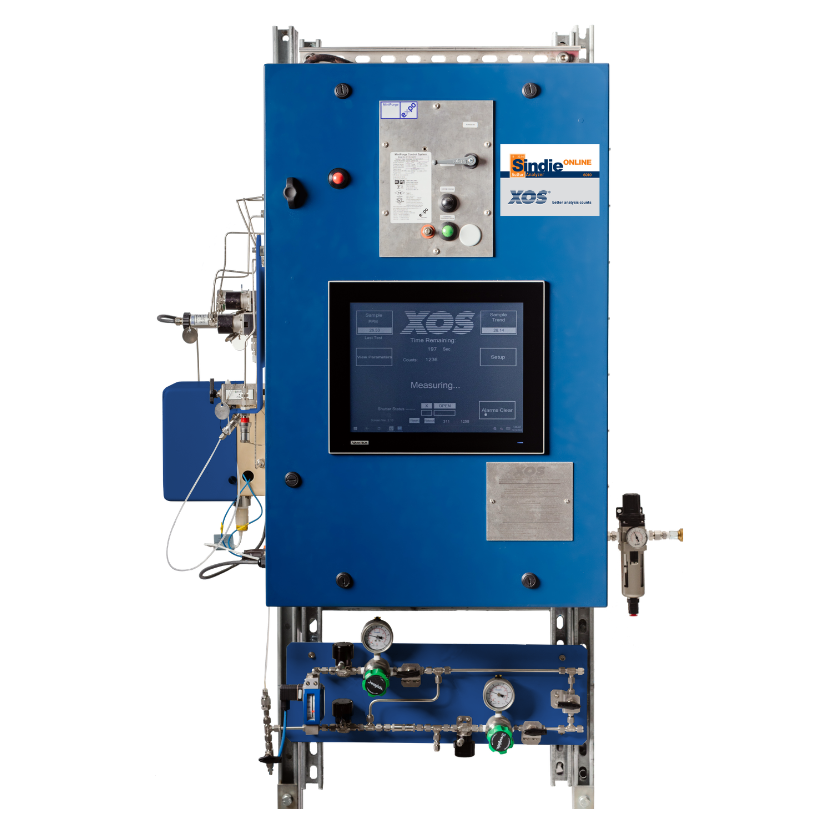

Sindie® Online

Effective online sulfur analysis in petroleum process streams.

Benefits and features

Continuous monitoring with programmable response times
Direct and non-destructive - No consumables, no gasses, no high temperature processes
Outstanding linearity - One calibration for diesel and gasoline matrices over the full dynamic range
Extremely low maintenance

Ready to order?

Get a quote

Specifications

Calibration Curves

3- to 5-point linear calibration curve

Catalysts

Communication Capabilities

4-20 mA; Modbus and Ethernet optional

Consumable/ utility gas

Instrument air or nitrogen

Elements & Concentrations

Sulfur/ 0.5 ppm (mg/kg)

Dimensions (Depth)

18 in / 45.7 cm

Dimensions (Height)

60 in / 152.4 cm

Dimensions (Width)

38 in / 96.5 cm

Measurement Time

User selectable (15-300 s typical)

Method Name

ASTM D7039

Number of sample streams

One. Optional up to four.

Options

C1D2 or ATEX compliant; Sample conditioning system; High range

Range

0.5 ppmw - 3000 ppmw. Extended Range (XR) available

XRF Film Type

Kapton

What's Included

Base system includes: - SINDIE 6010 On-Line MWD XRF analyzer based on ASTM method D 7039 - Rated for area classification CLASS I Div 2 Groups B, C, D T4A - Stainless steel nameplate - Dynamic range 0.6 - 3000 ppm wt. - Signal output: (2) user configurable 4-20 mA result outputs - Manual sample valve for lab verification - Sample Management System - Modular valves for the introduction of calibration fluids - Pressure and flow regulators/meters -Five (5) 300cc SS sample cylinders for calibration fluids - One (1) reference literature library includes: One (1) Installation Manual, One (1) User Manual, One (1) Maintenance Manual, One (1) CD copy containing all of the above -One (1) Dynamic Window Module
