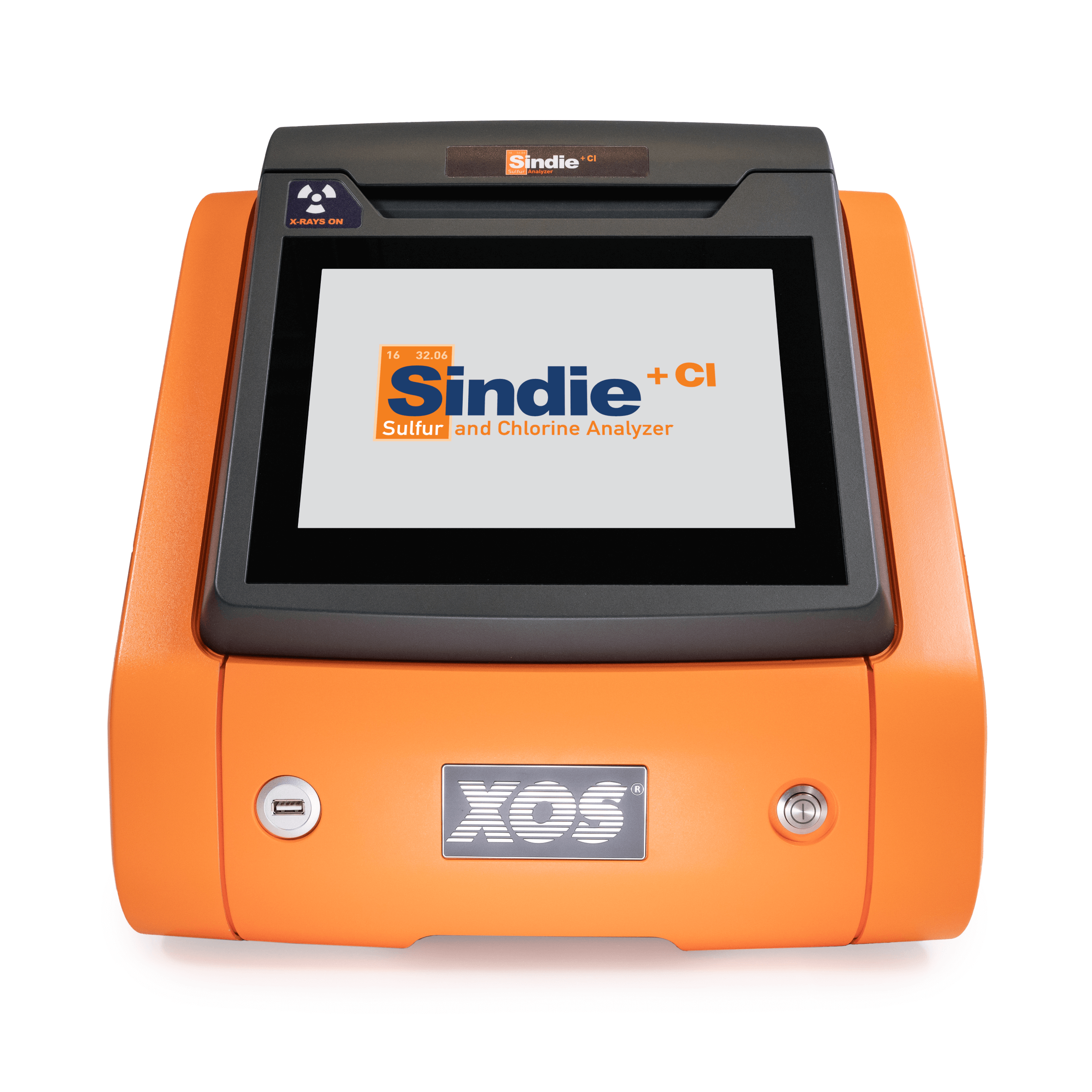

Sindie® +Cl

Two critical elements with one instrument.

Benefits and features

a two-in-one instrument enabling trace analysis of both sulfur and chlorine with one analyzer
Easy to use - just plug in and measure
Automatic sulfur correction saves time and improves accuracy and precision on high sulfur samples
the ideal solution to certify sulfur levels in finished products, assess chlorine for corrosion mitigation, and optimize process parameters.

Ready to order?

Specifications

Autosampler

Single cup and autosampler configurations available

Calibration Curves

30 callibration curves. Automatic and manual callibration functionality

Catalysts

No

Communication Capabilities

USB, Ethernet, LIMS integrated

Elements & Concentrations

Sulfur/ 0.4 ppm (mg/kg)

Chlorine/ 0.3 ppm (mg/kg)

Dimensions (Depth)

21 in / 54 cm

Dimensions (Height)

16.5 in / 42 cm

Dimensions (Width)

15.8 in / 40 cm

Measurement Time

User selectable 10-999 s

Method Name

ASTM D2622, ASTM D7039, ISO 20884, EN 16997

Range

0.7 ppm (mg/kg) - 10%

Sample Cup Type

Standard XRF sample cup

Specific Technology

MWDXRF

What's Included

Quick-start guide, operations manual, radiation survey, power cord, 6' drain tubing, spare fan filter, spare fuse, 100 sample cups, 100 sample films, sample stand, spare primary window, and two sets of calibration standards.

Applications

Petrochemical

Petrochemical

Optimize refining process with precise sulfur and chlorine analysis for crude oil, fuels, and aromatics. Learn more

Plane

Sustainable Aviation Fuel

Verify critical fuel specifications and ensure quality control in the production of sustainable aviation fuels. Learn more

Pyrolysis

Plastic Pyrolysis

Monitor chlorine levels in plastic waste recycling to protect catalyst and prevent corrosion in pyrolysis units. Learn more

Parts and Supplies

Explore supplies

Fan filter (200033-01)-1

Fan Filter Series: 200033-01

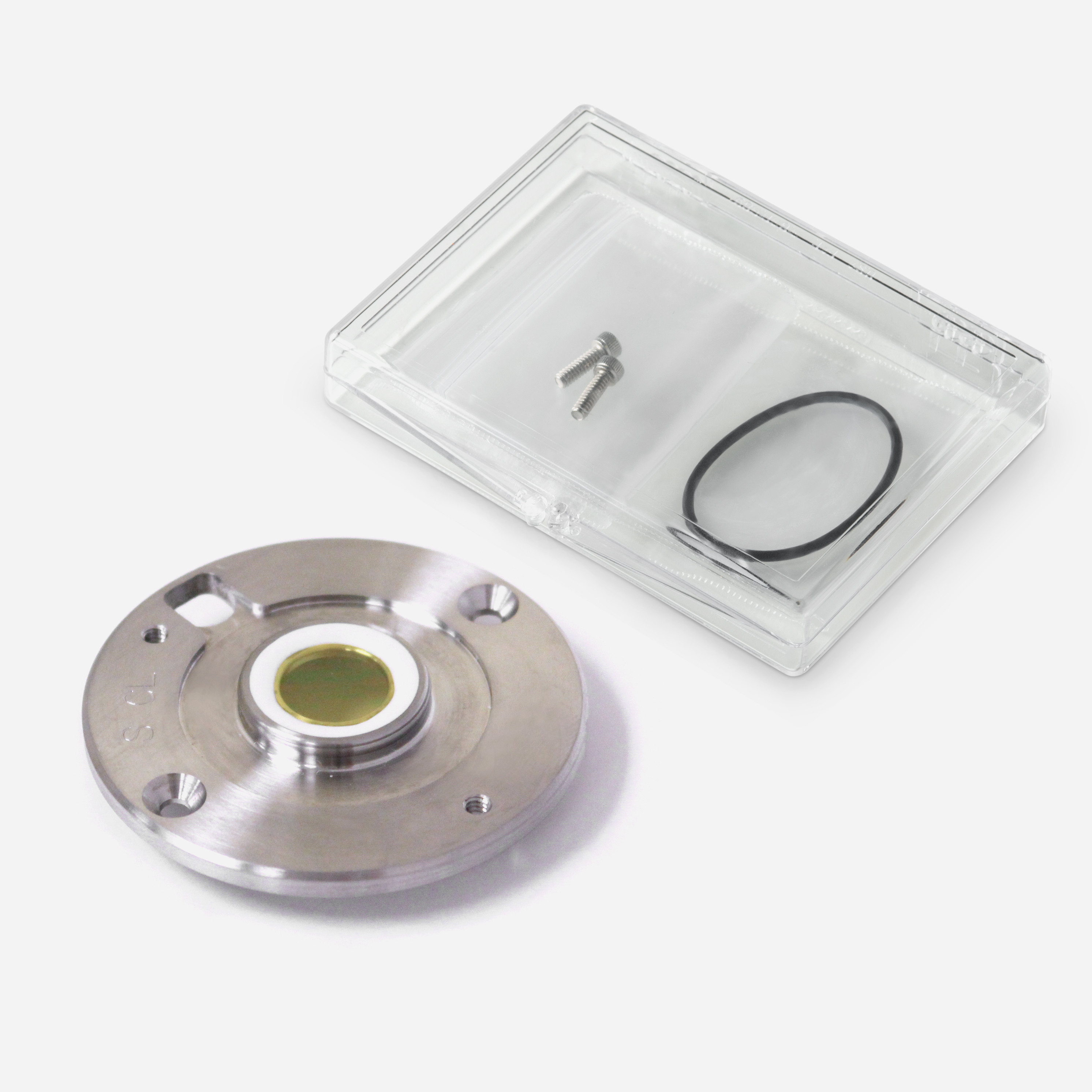

Primary Window - 345377448657 Series: 490075-01

Primary Window - Accucells Series: 400527-02

Primary Window - Chemplex Series: 400527-01

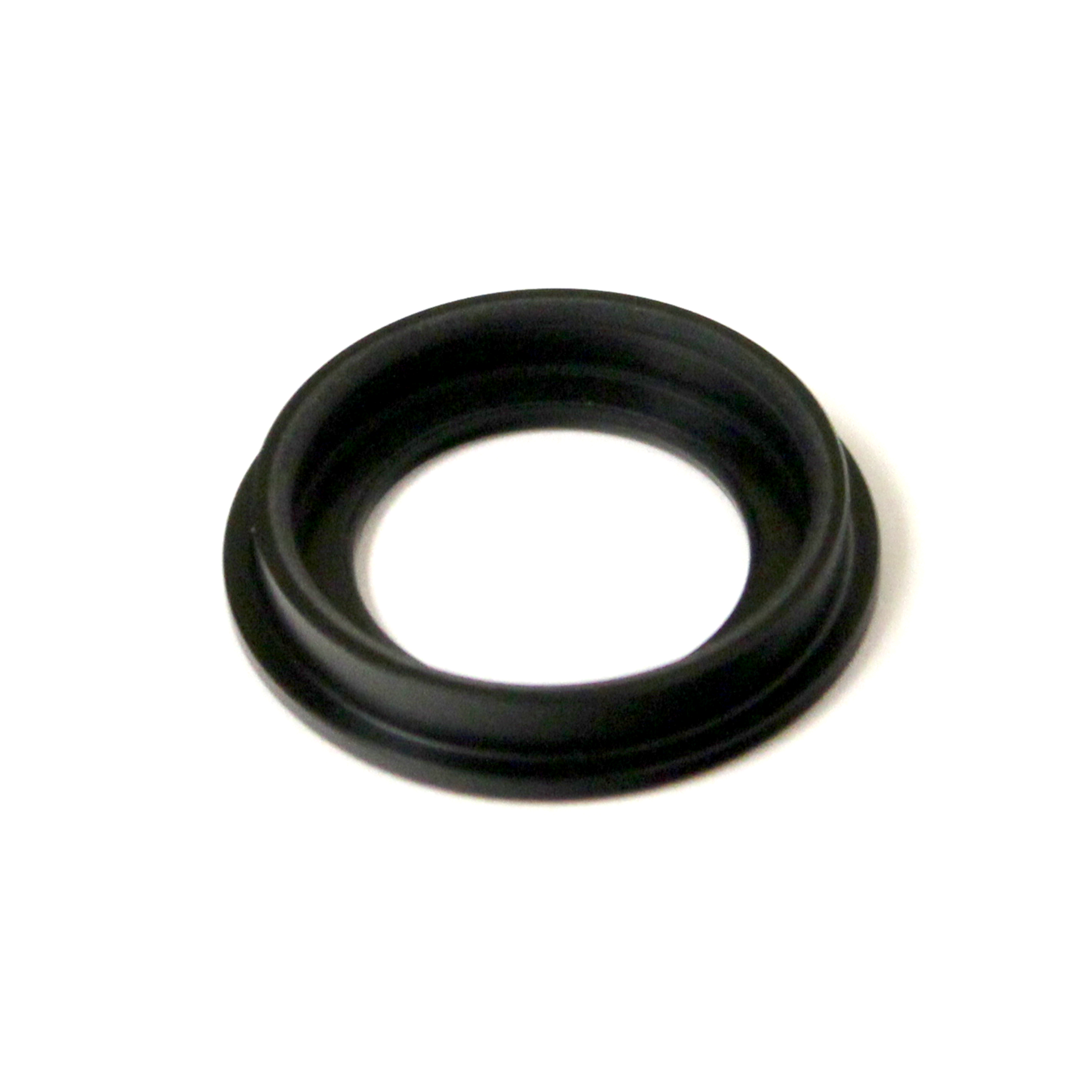

Secondary Film Retaining Ring (308758-01) Series: 308758-01

Secondary Film Retaining Ring (302203-01) Series: 302203-01

Vacuum pump - online (401464-02)

Vacuum Pump - R-Series Series: 403723-01

Vacuum Pump Rebuild Kit Series: 200337-01

Standard XRF Cups Series: 200334-01

Calibration-Set-Cl-in-Mineral-Oil-0-50-ppm-(10ml)-(200766-06)

Calibration Set Cl in Mineral Oil 0-500 ppm (10ml) Series: 200766-02

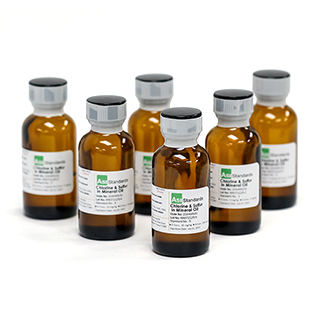

Calibration-Set-S-&-Cl-in-Mineral-Oil-0-500-ppm-(10ml)-(204454-01)

Calibration Set S & Cl in Mineral Oil 0-500 ppm (10ml) Series: 204454-01

Image coming soon

Calibration Set S & Cl in Mineral Oil 0-500 ppm (100ml) Series: 204455-01

Disposable Pipettes - Pack of 500 Series: 700116-01

Kimwipes-(700178-01)

Kimwipes - 1 box Series: 700178-01

Foam-Tipped-Swabs-(700005-01)

Foam Tipped Swabs - Pack of 50 Series: 700005-01

Explore supplies

Supporting documents

Printable datasheets and other documents for quick and easy access to full product specifications and technical details.

Sindie +Cl Datasheet Download now

XOS Product Catalog Download now
