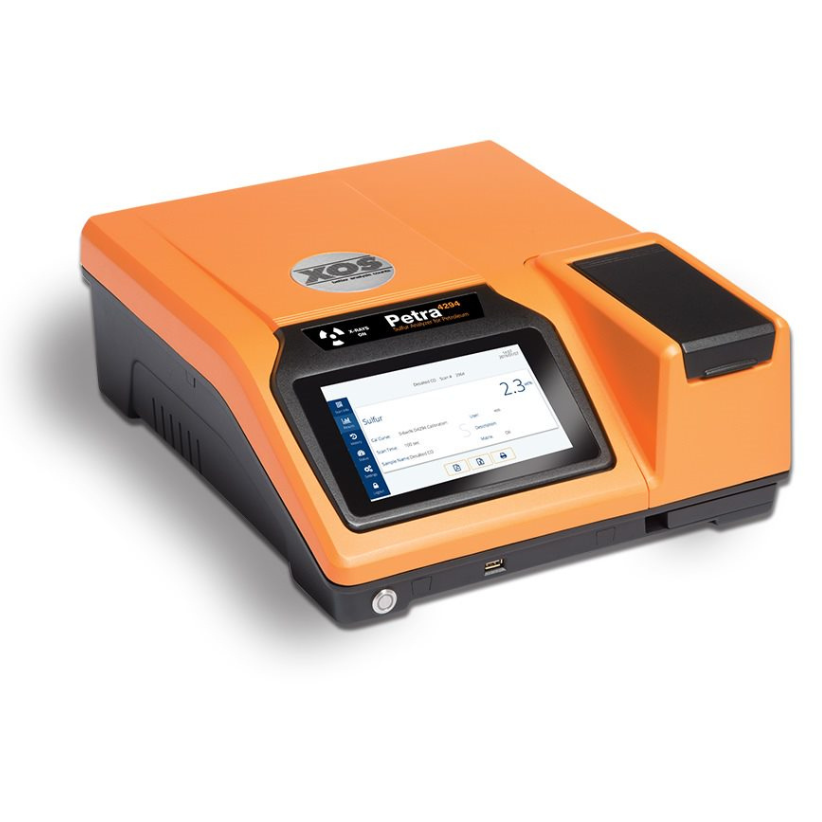

Petra® SUPRA

From hydrocarbons to plastics, Petra® SUPRA delivers total light element analysis with quick cycle times and no sample preparation.

Benefits and features

Low maintenance: no gasses, heating elements, columns, or quartz tubing
Total light element analysis in a wide range of materials, including hydrocarbons, plastics, polymers, and other chemicals
Small footprint
For use in refinery labs, pipeline terminals, inspection laboratories, and manufacturing QC labs

Ready to order?

Get a quote

Specifications

Autosampler

Calibration Curves

30 calibration curves

Catalysts

Yes

Communication Capabilities

Printer, USB & Ethernet, LIMS Integrated

Elements & Concentrations

Sulfur / 0.13 ppm (mg/kg)

Phosphorus / 0.25 ppm (mg/kg)

Potassium / 0.06 ppm (mg/kg)

Calcium / 0.03 ppm (mg/kg)

Magnesium / 29 ppm (mg/kg)

Sodium / 160 ppm (mg/kg)

Silicon / 0.6 ppm (mg/kg)

Aluminum/ 2 ppm (mg/kg)

Dimensions (Depth)

16.5 in / 41.9 cm

Dimensions (Height)

6 in / 15.3 cm

Dimensions (Width)

14.5 in / 36.8 cm

Measurement Time

User selectable 30-900 s

Method Name

ASTM D4294, ISO 8754, ISO 13032, and IP 336

Options

Printer (US/CA only), calibration standards, consumables

Range

Sulfur 0.13 ppm (mg/kg) - 10 wt%

Sample Cup Type

30 mm sample cup

Specific Technology

EDXRF

What's Included

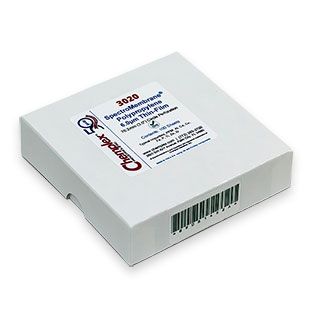

100 sample cups, 100 sample films, 100 pipettes, 1 sulfur calibration set, 1 refinement calibration set, sample cup stand, and thumb drive (contains manuals, best practices guide, calibration guide, quick-start guide).
