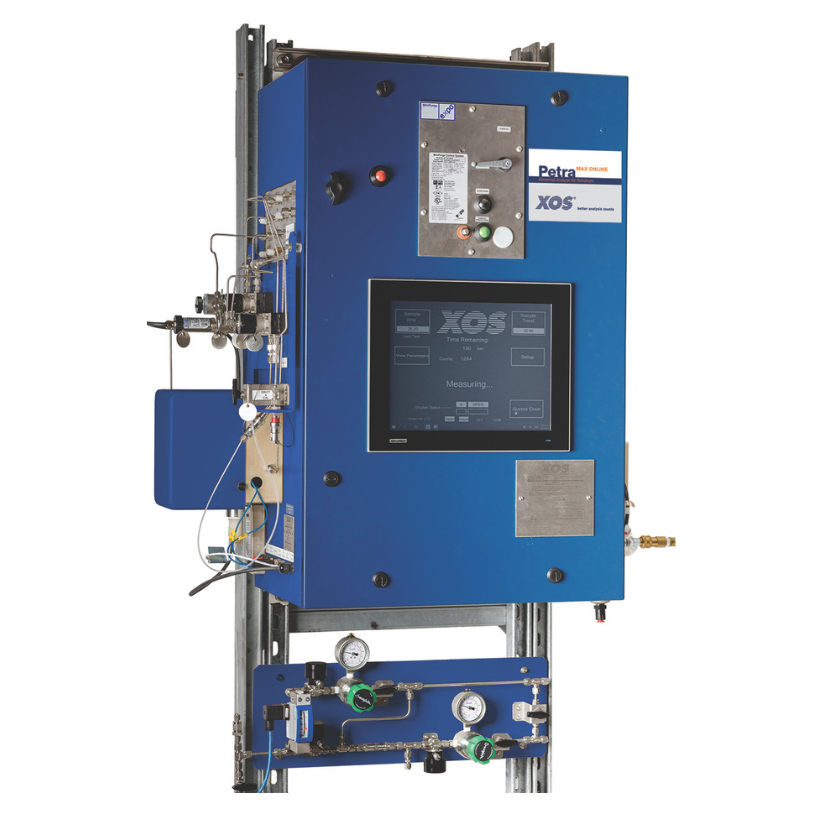

Petra® MAX Online

Online Sulfur and Metals Analysis in Streams.

Benefits and features

Continuous, real-time analysis
Rapid response to upsets
Low maintenance: no consumable liquids, gasses, combustion, or sample conversion
Not sensitive to sample temperature changes

Ready to order?

Get a quote

Specifications

Calibration Curves

Fundamental parameters, empirical custom call available

Communication Capabilities

Multiple 4-20 mA analog outputs (one per element); Modbus and Ethernet optional

Consumable/ utility gas

Instrument air or nitrogen

Elements & Concentrations

Sulfur/ 20 ppm (mg/kg),

Iron/ 0.1 ppm (mg/kg),

Nickel/ 0.1 ppm (mg/kg),

Vanadium/ 0.2 ppm (mg/kg)

Dimensions (Depth)

18 in / 45.7 cm

Dimensions (Height)

60 in / 152.4 cm

Dimensions (Width)

38 in / 96.5 cm

Measurement Time

300 s

Method Name

ASTM D4294, ASTM D8252

Number of sample streams

One (1)

Options

Cabiet Heter/Cooler

What's Included

Base system includes: - PetraMAX On-Line EDXRF analyzer based on ASTM Method D8252 and D4294 - Certified for area classification Class I Div 2 T4A Tamb = - 20C to +40C - Stainless steel nameplate - Manual sample valve for lab verification - Four (4) 300cc SS sample cylinders for calibration fluids - Sample Management System with automated valves, pressure regulators, flow meter and flow control - One (1) reference literature library includes: One (1) Installation manual One (1) User manual One (1) Maintenance manual One (1) CD copy containing all of the above - Includes one (1) high viscosity dynamic window module 403973-01 - Includes 4x500ml bottle set for Refinement Calibration - Includes 1x500ml bottle check sample (1000ppm S, 10ppm Ni, V and Fe each

Applications

Petrochemical

Optimize refining process with precise sulfur and chlorine analysis for crude oil, fuels, and aromatics. Learn more

Sustainable Aviation Fuel

Verify critical fuel specifications and ensure quality control in the production of sustainable aviation fuels. Learn more

Plastic Pyrolysis

Monitor chlorine levels in plastic waste recycling to protect catalyst and prevent corrosion in pyrolysis units. Learn more
