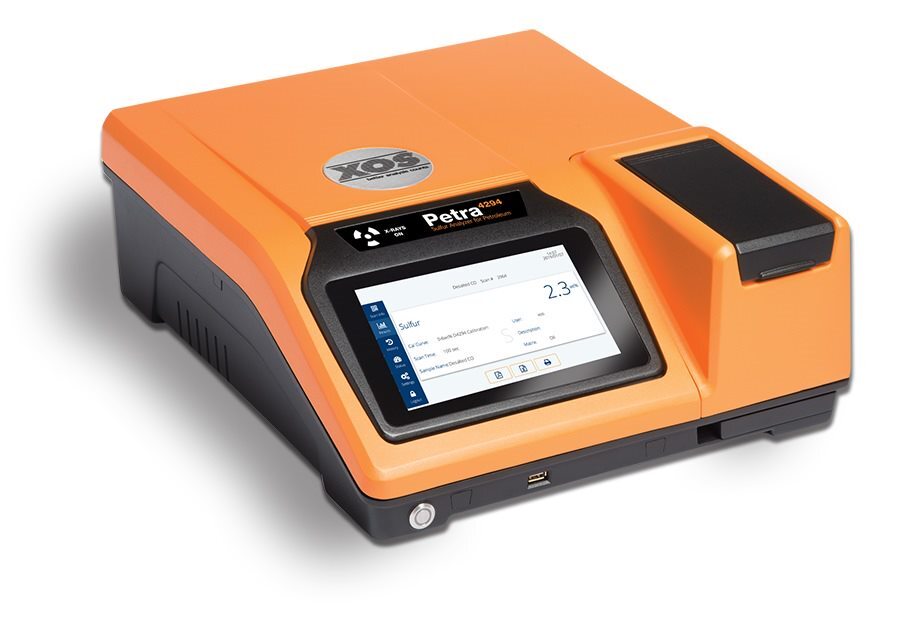

Petra® 4294

D4294 sulfur analysis across a broad measurement range.

Benefits and features

Easy to use - just plug in and measure
Precise sulfur analysis with a LOD as low as 2.6 ppm (mg/kg)
Small footprint
Petra is powered by XOS’ EDXRF technology: an elemental analysis technique that offers significantly enhanced detection performance over traditional XRF. This technique applies state-of-the-art monochromating and focusing optics, enabling a dramatically higher signal-to-background ratio compared to traditional polychromatic X-ray Fluorescence

Ready to order?

Get a quote

Specifications

Autosampler

Single cup and autosampler configuration available

Calibration Curves

30 calibration curves, linear (automatic calibration available)

Catalysts

Yes

Communication Capabilities

Printer, USB & Ethernet, LIMS integrated

Elements & Concentrations

Sulfur / 2.6 ppm (mg/kg)

Dimensions (Depth)

16.5 in / 41.9 cm

Dimensions (Height)

6 in / 15.3 cm

Dimensions (Width)

14.5 in / 36.8 cm

Measurement Time

User selectable 30-900 s

Method Name

ASTM D4294, ISO 8754, and IP 336

Options

Vibration plate

Range

Sulfur 2.6 ppm (mg/kg) - 10 wt%

Sample Cup Type

Standard XRF sample cup

Specific Technology

EDXRF

What's Included

Spare fan filter, 100 sample cups, 100 Mylar sample films, 25 Mylar sample basket windows, sulfur calibration set, sample cup stand, thumb drive (contains manuals, best practices guide, calibration guide, quickstart guide)
