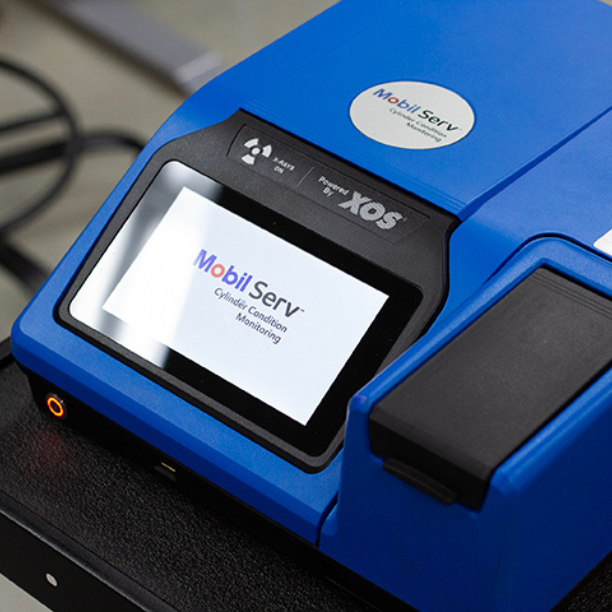

Mobil℠ Cylinder Condition Monitoring

Engine intelligence at sea.

Benefits and features

Powered by XOS’ technology, Mobil℠ Cylinder Condition Monitoring reduces oil analysis turnaround from hours to minutes. Faster access to real‑time oil analysis helps operators respond quickly to changing engine conditions and protect critical marine assets.
Designed for demanding marine environments, the Mobil℠ Cylinder Condition Monitoring service supports shipboard lubricant analysis with simplified, crew‑friendly sampling. No hazardous chemicals or specialized training are required, enabling routine marine oil analysis as part of normal vessel operations.
Mobil℠ CCM instruments provide laboratory-quality marine oil diagnostics, delivering precise elemental measurements. Such high‑resolution data supports informed decisions for marine lubricant optimization and engine protection.
Available for lease or purchase, these analyzers are supported by expert service to ensure long‑term performance for marine lubrication monitoring programs.

Ready to order?

Get a quote

Specifications

Communication Capabilities

Online Mode: Hardwired connection
Offline Mode: manual data submissions

Consumable/ utility gas

Not needed

Dimensions (Depth)

16.5 in.

Dimensions (Height)

6 in.

Dimensions (Width)

14.5 in.

Elements & Concentrations

S < 50 ppm

Ca < 10 ppm

V < 1 ppm

Cr < 1 ppm

Fe < 1 ppm

Measurement Time

Lube Mode: 30s, Fuel Mode 300s

Method Name

N/A

Options

N/A

Range

500 ppm – 4000 ppm Sulfur while in Fuel Mode

Sample Cup Type

45 mL Sample bottle with Mylar Accucap

Specific Technology

EDXRF

Applications

Petrochemical

Optimize refining process with precise sulfur and chlorine analysis for crude oil, fuels, and aromatics. Learn more

Parts and Supplies

Explore supplies

Accucap 6um Mylar, pack of 250 Series: 403365-01

CCM Sample Bottles, pack of 250 Series: 404051-01

CCM Validation Kit Series: 403349-02

Self-sticking Mylar Replacement Window, pack of 25 Series: 204494-01

Replacement Fan Filter Series: 204473-01

Explore supplies

Featured resources

Deepen your knowledge with the latest research and insights specifically related to this product.

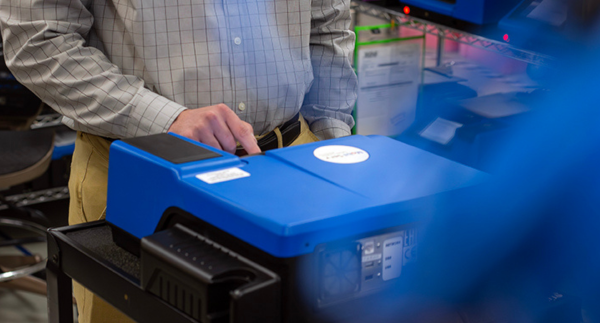

On-Board Testing to Mitigate Cold Corrosion Damage
